Laboratory

Integrated Testing

• Water content by steaming
  – NF EN ISO 17892 1

  • Automatic integration of the water content into the other test modules.
  • Easy management of sample series.

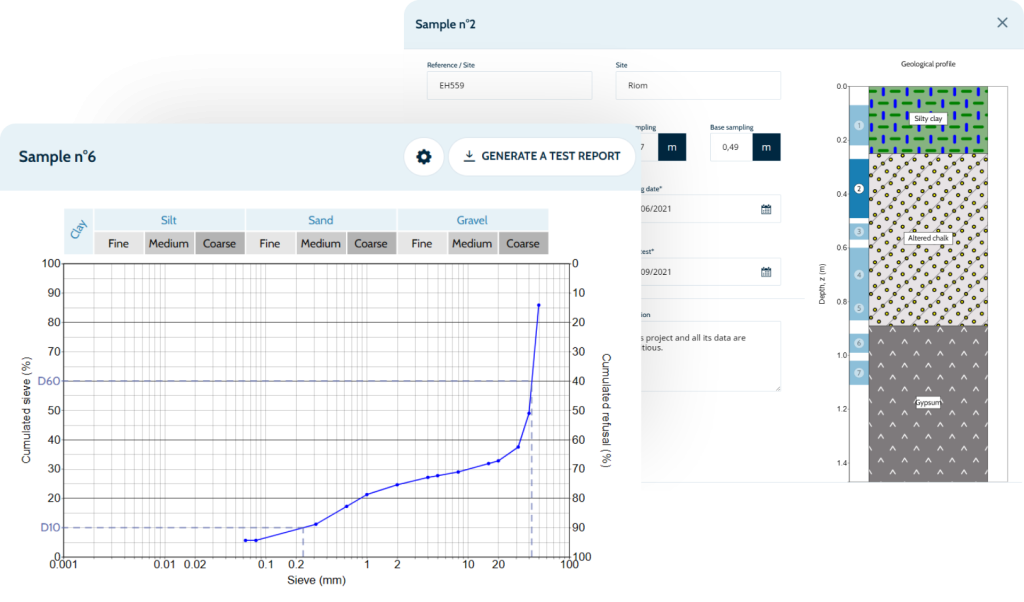

• Particle size distribution by sieving
  – NF EN ISO 17892 4

  • Choice of input: cumulative or individual weighings.
  • Possibility of using a custom sieve series model.

• VBS – Methylene blue value
  – NF EN 17542 3

  • Direct compatibility with particle size results if performed.
  • Built-in 5mm sieving option.

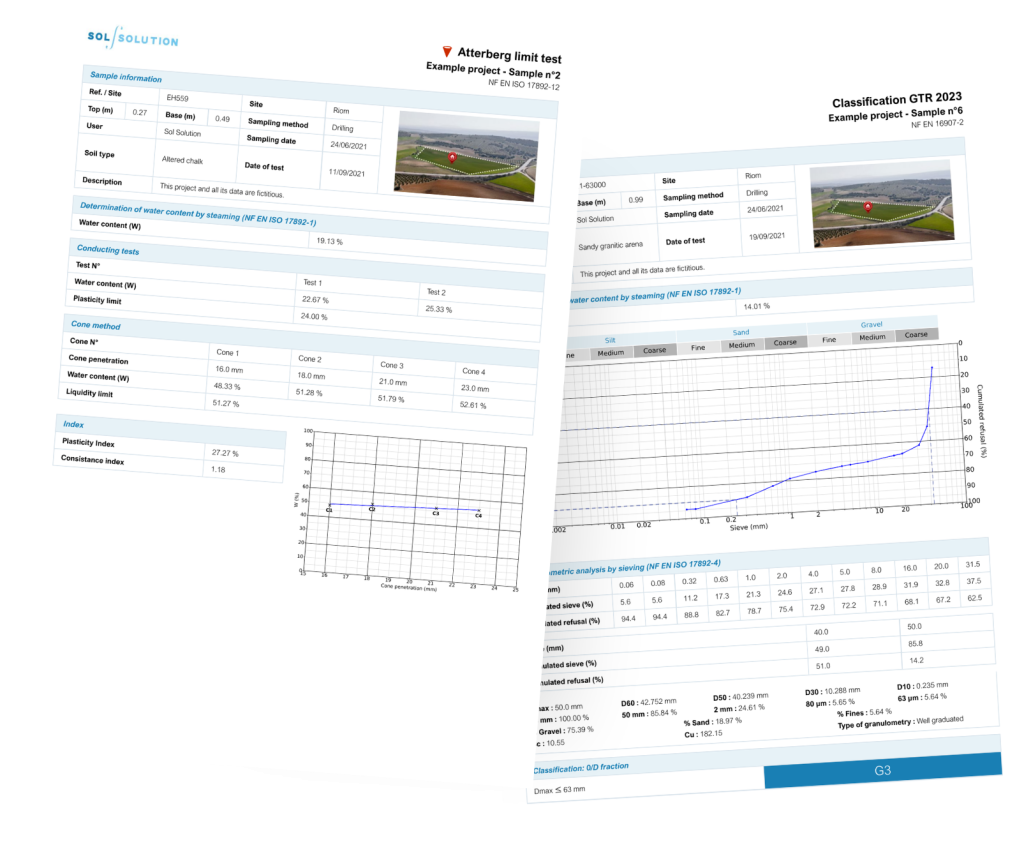

• Atterberg limits
  – NF EN ISO 17892 12


  • Method selection: cone or Casagrande cup.
  • Integrated assistance in case of need to retest (inconsistent values, non-compliant curve, etc.).

• CBR / IPI
  – NF P 94 078


  • Automatic integration of test mold characteristics.
  • Manual punch entry or import of recorded data.
  • Calculation of the indices: CBR, CBR after immersion, Immediate Bearing Index (IPI).

• Determination of material compaction references (Proctor)
  – NF P 94 093

  • Choice of Proctor normal or Proctor modified.
  • Selection of mold type: Proctor or CBR.
  • Interactive help to estimate the amount of water to be added to reach the water levels of the next targeted levels.
  • Complete results: Proctor curve, saturation curves, compaction reference value.
